Index of /S8000/misc/diagrams/S8000_CPU_board/original
Name Last modified Size Description
Parent Directory -

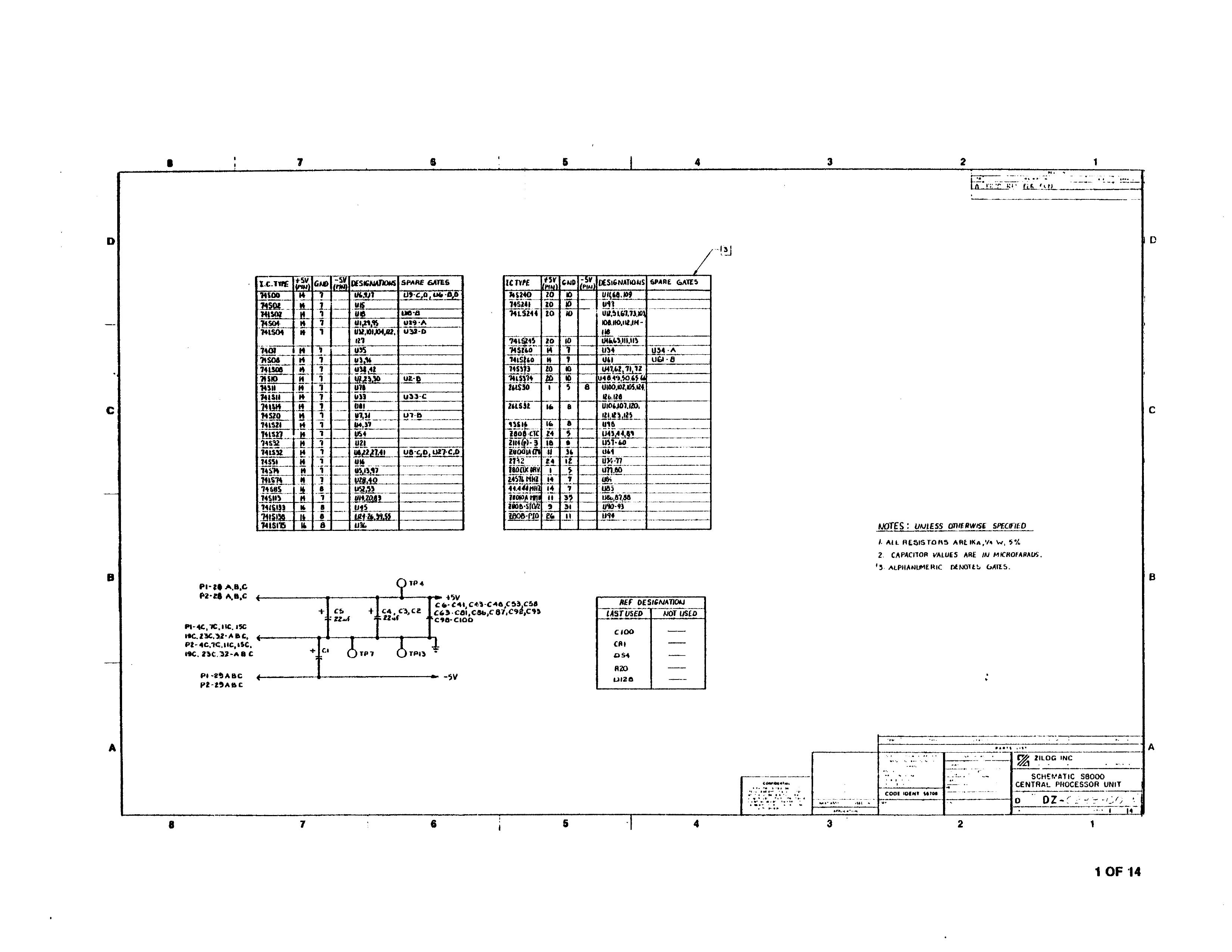

S8000_CPU_board_01.jpg 2008-10-31 22:13 557K

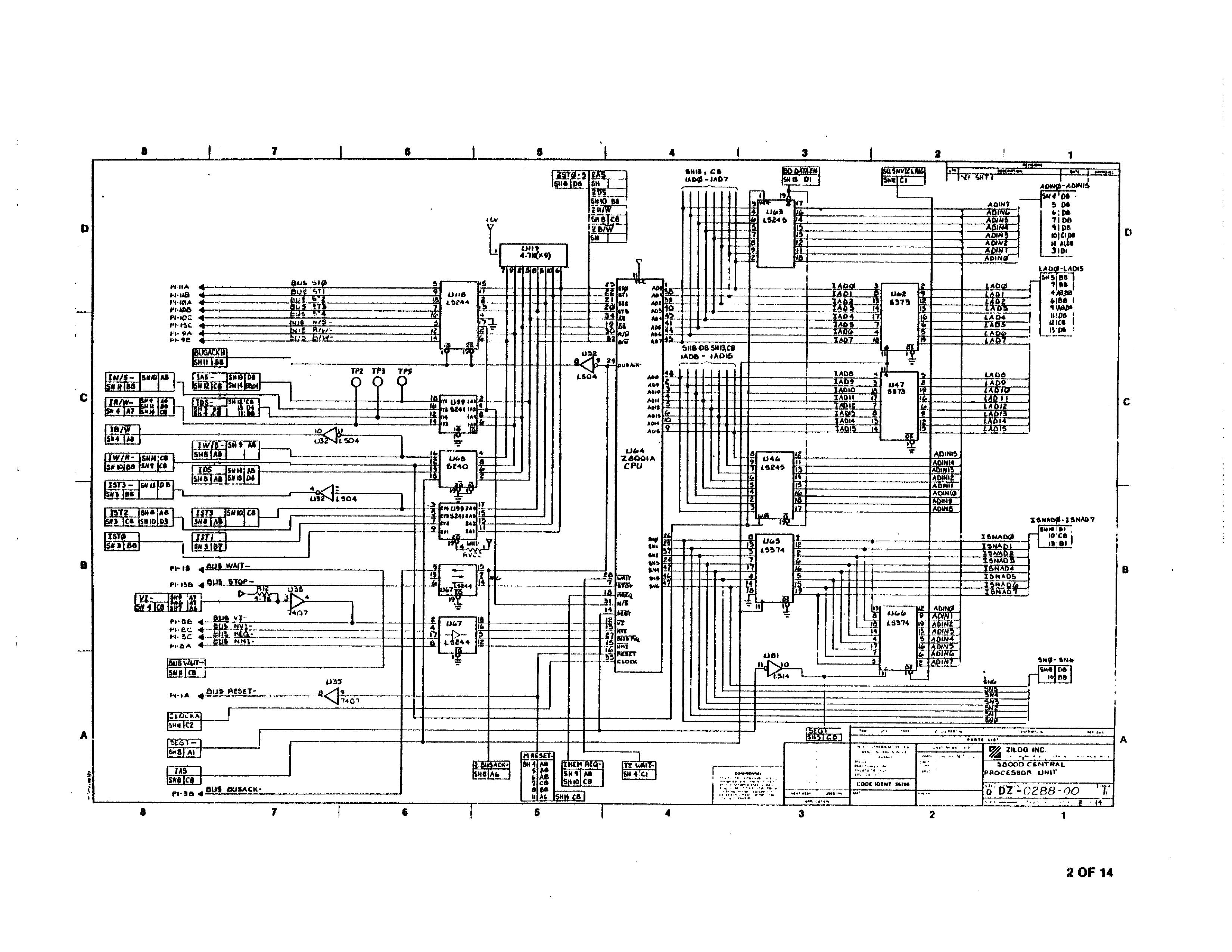

S8000_CPU_board_02.jpg 2008-10-31 22:14 1.0M

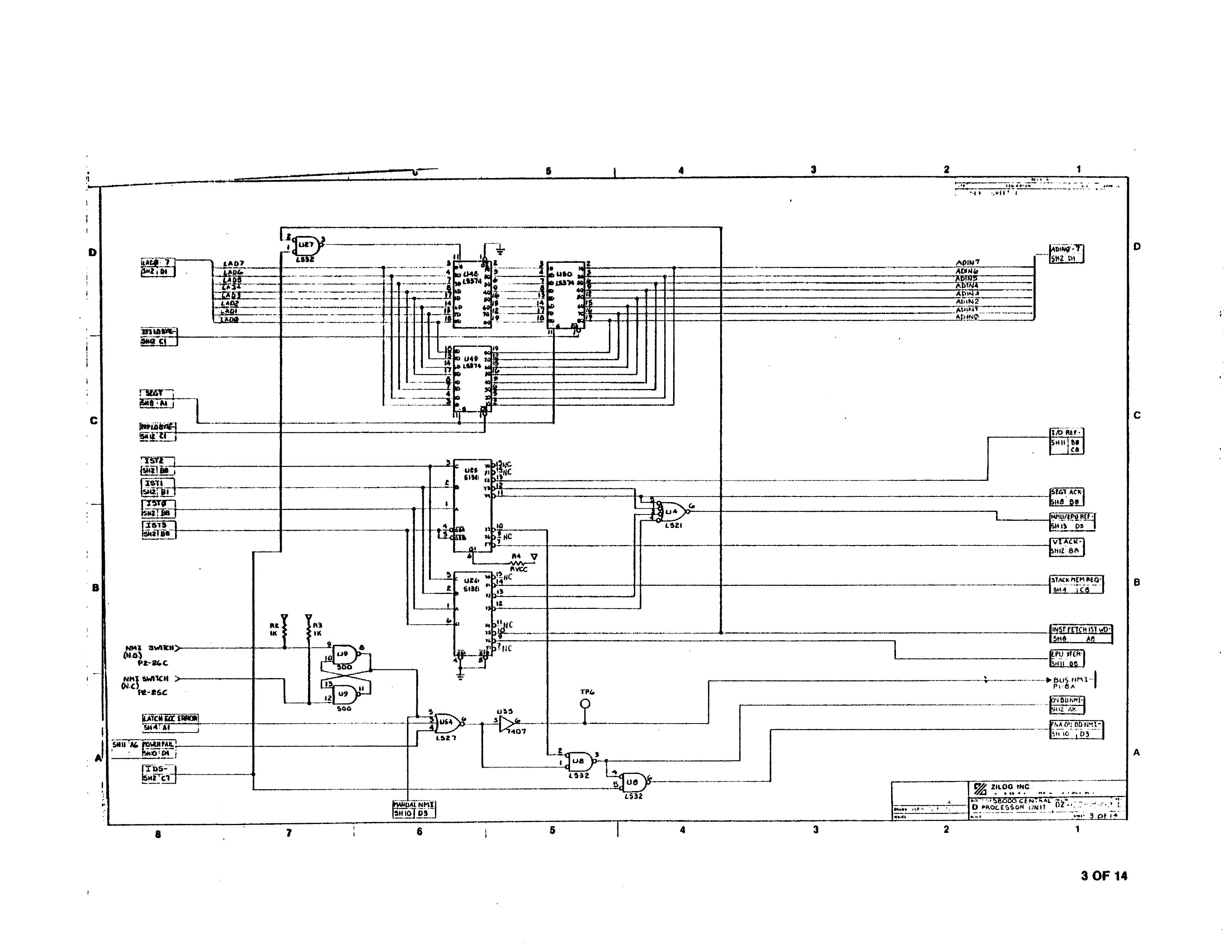

S8000_CPU_board_03.jpg 2008-10-31 22:15 632K

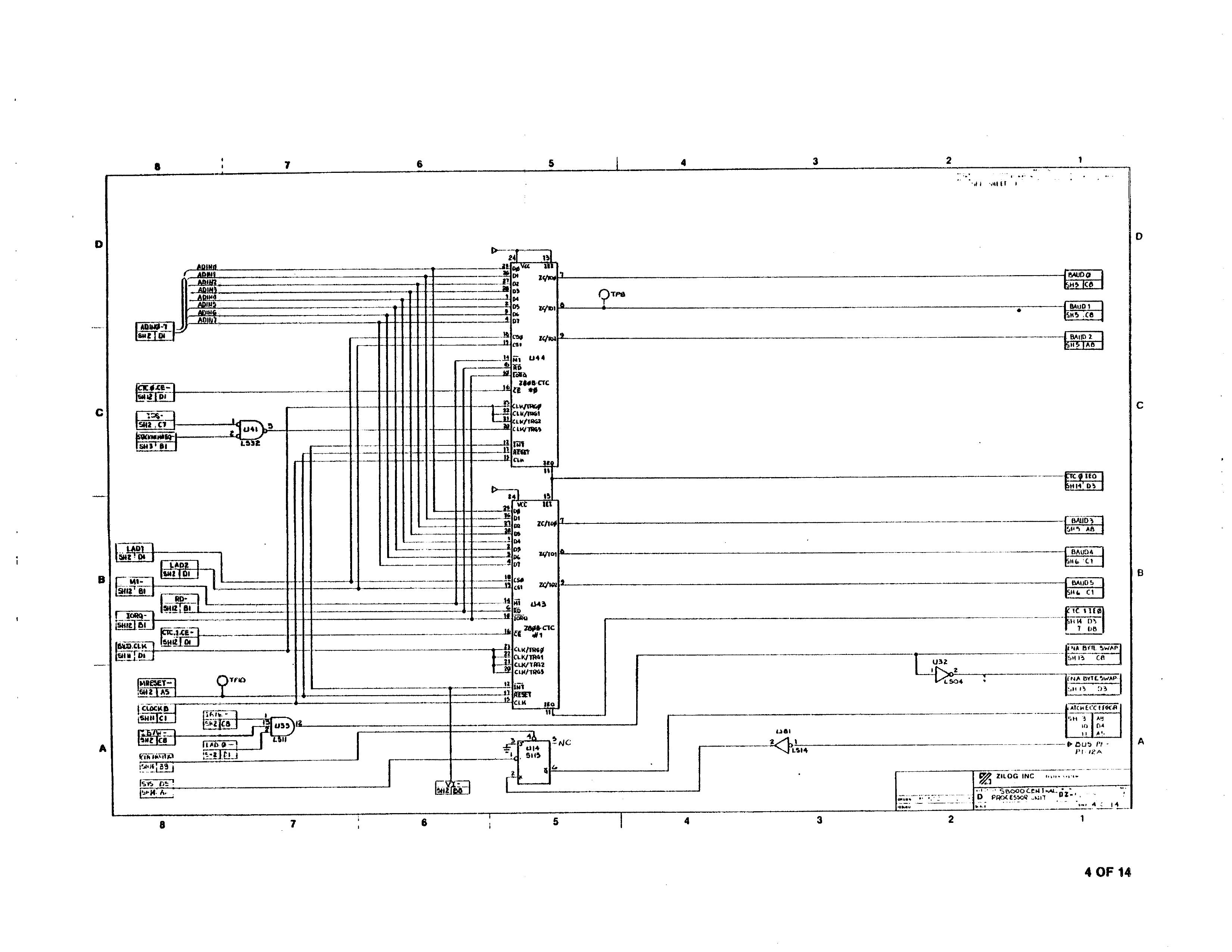

S8000_CPU_board_04.jpg 2008-10-31 22:16 598K

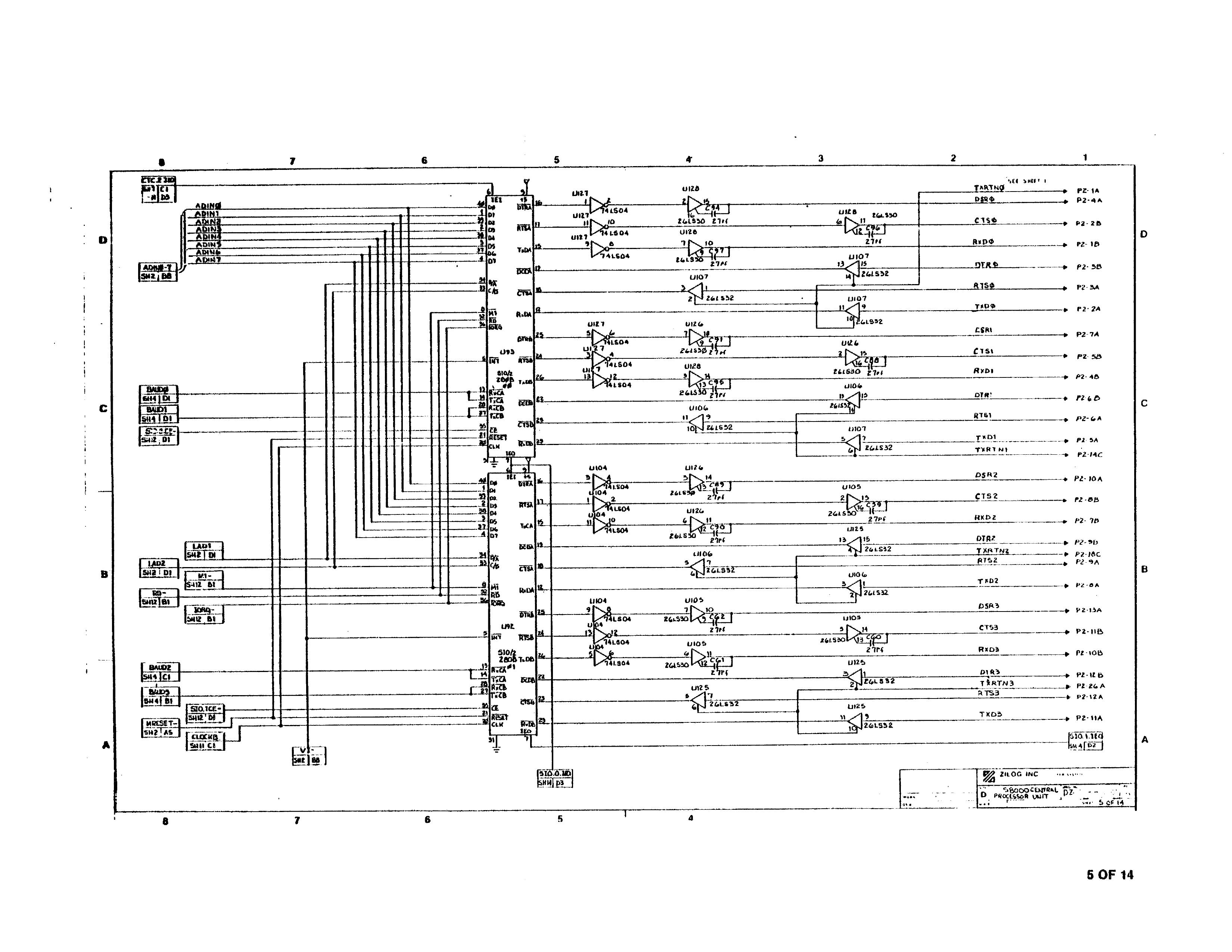

S8000_CPU_board_05.jpg 2008-10-31 22:17 780K

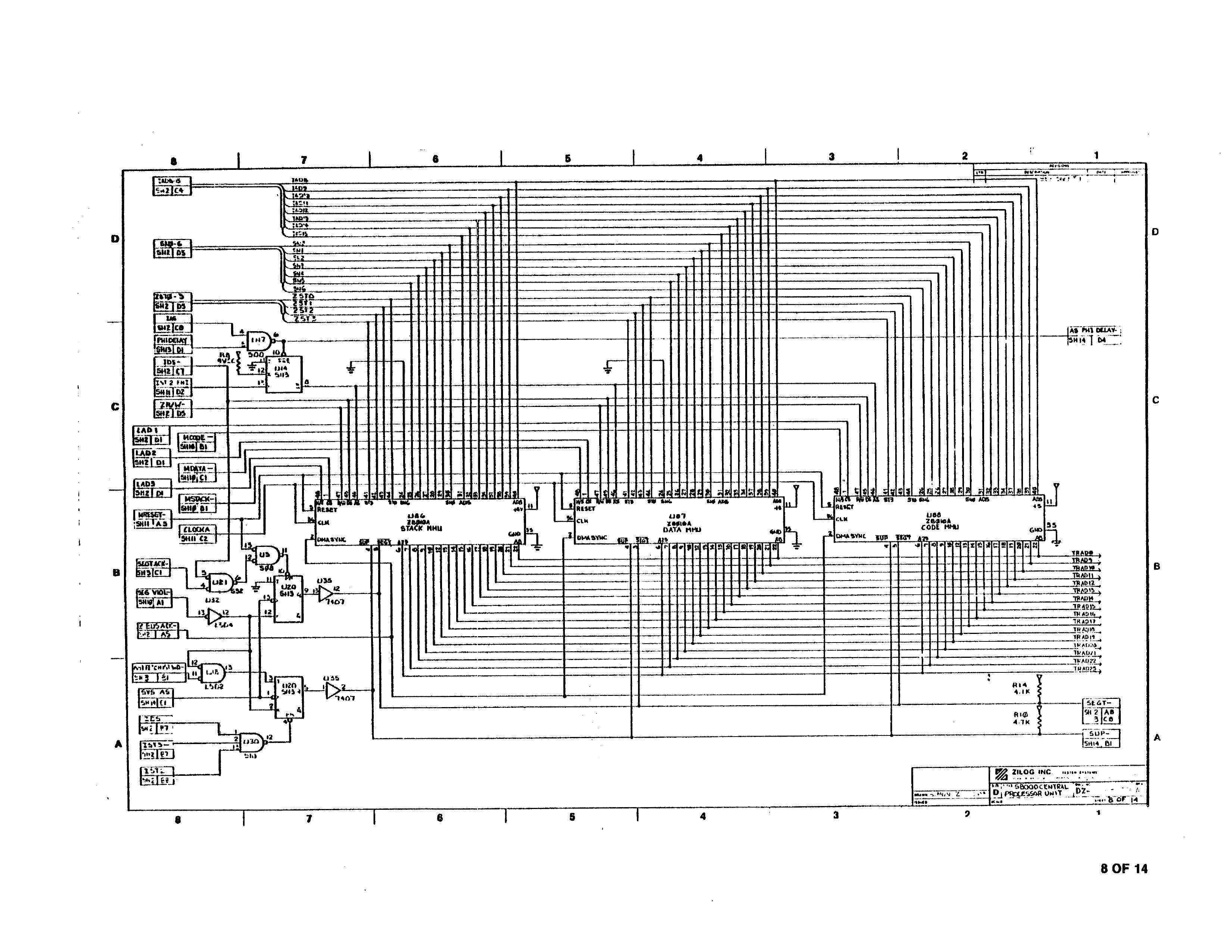

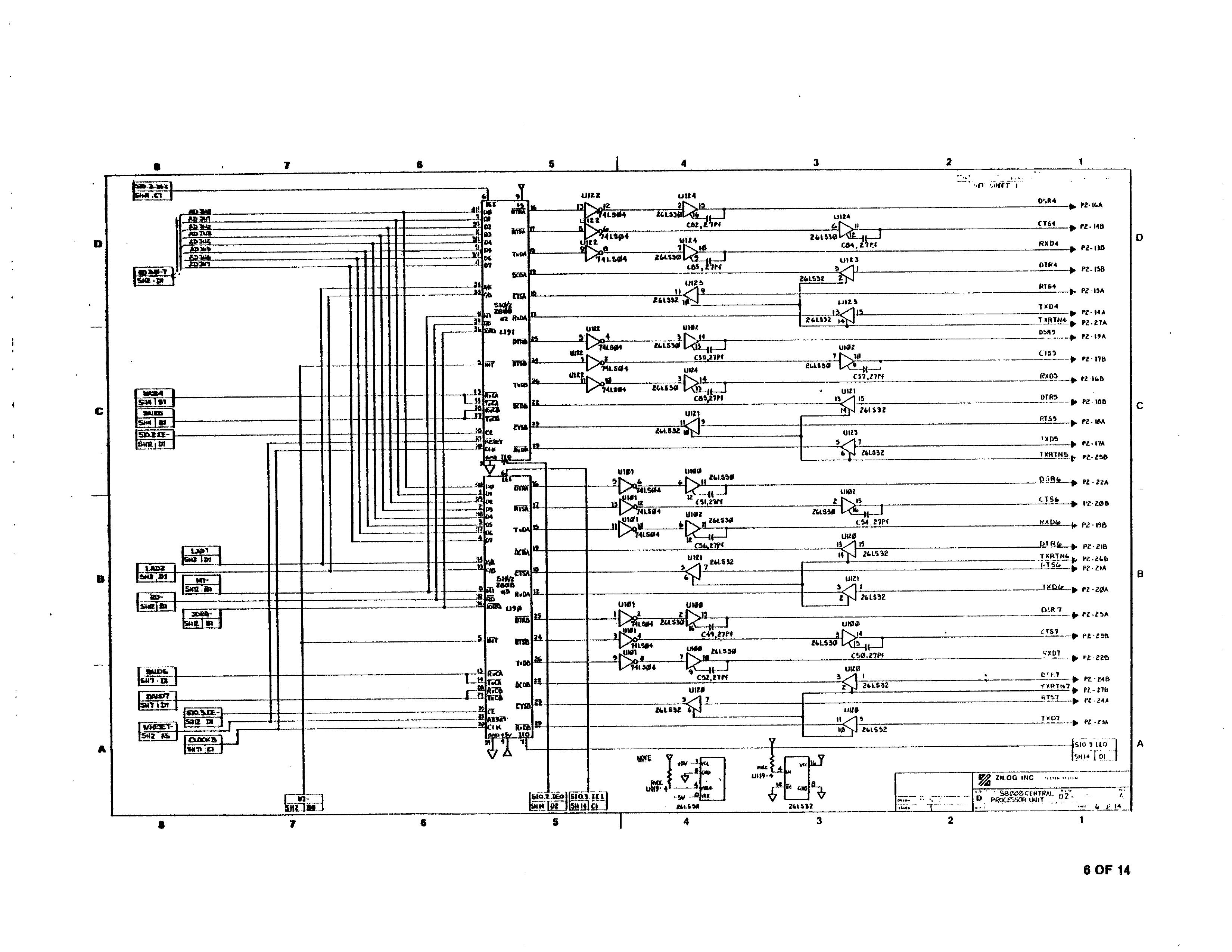

S8000_CPU_board_06.jpg 2008-10-31 22:18 818K

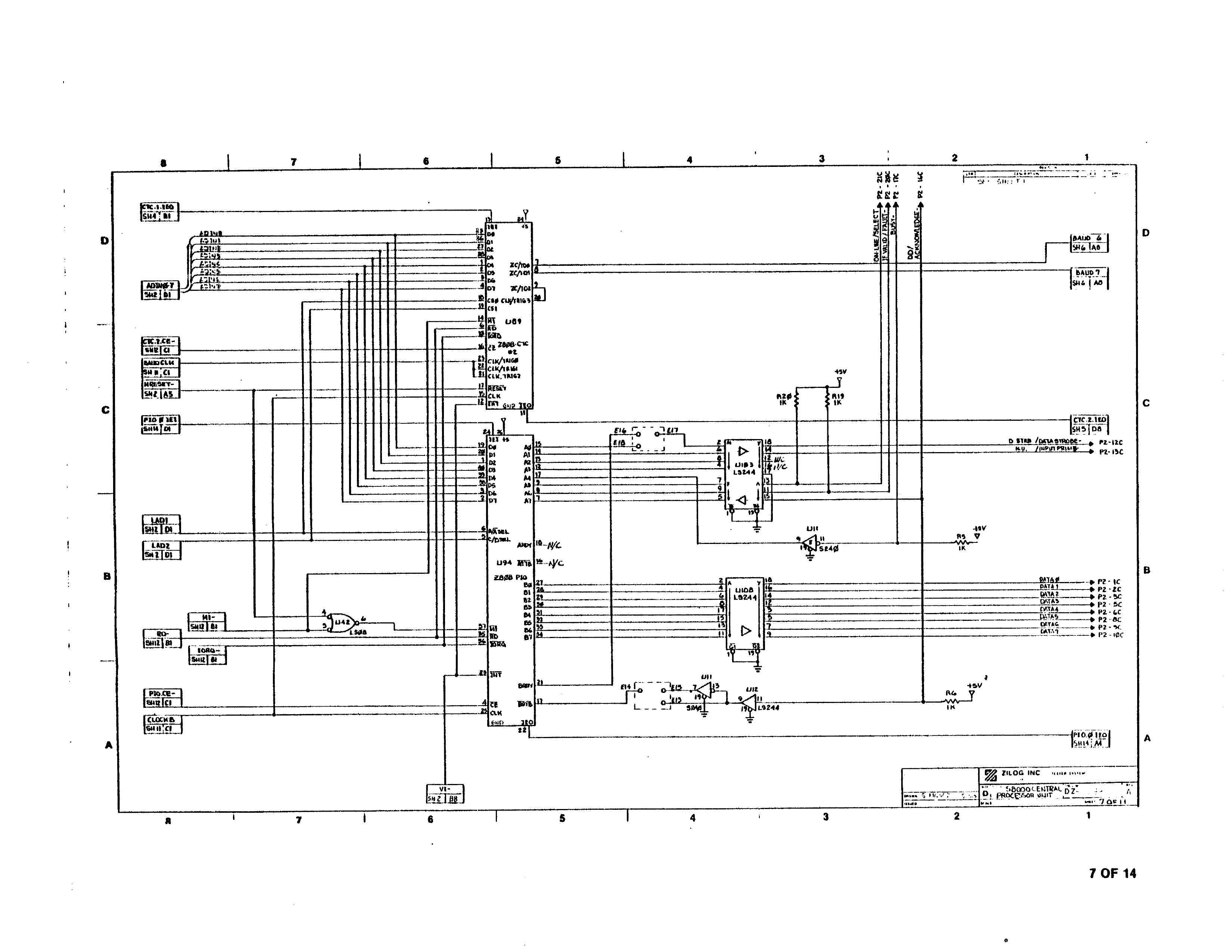

S8000_CPU_board_07.jpg 2008-10-31 22:19 657K
S8000_CPU_board_08.jpg 2008-10-31 22:20 1.0M

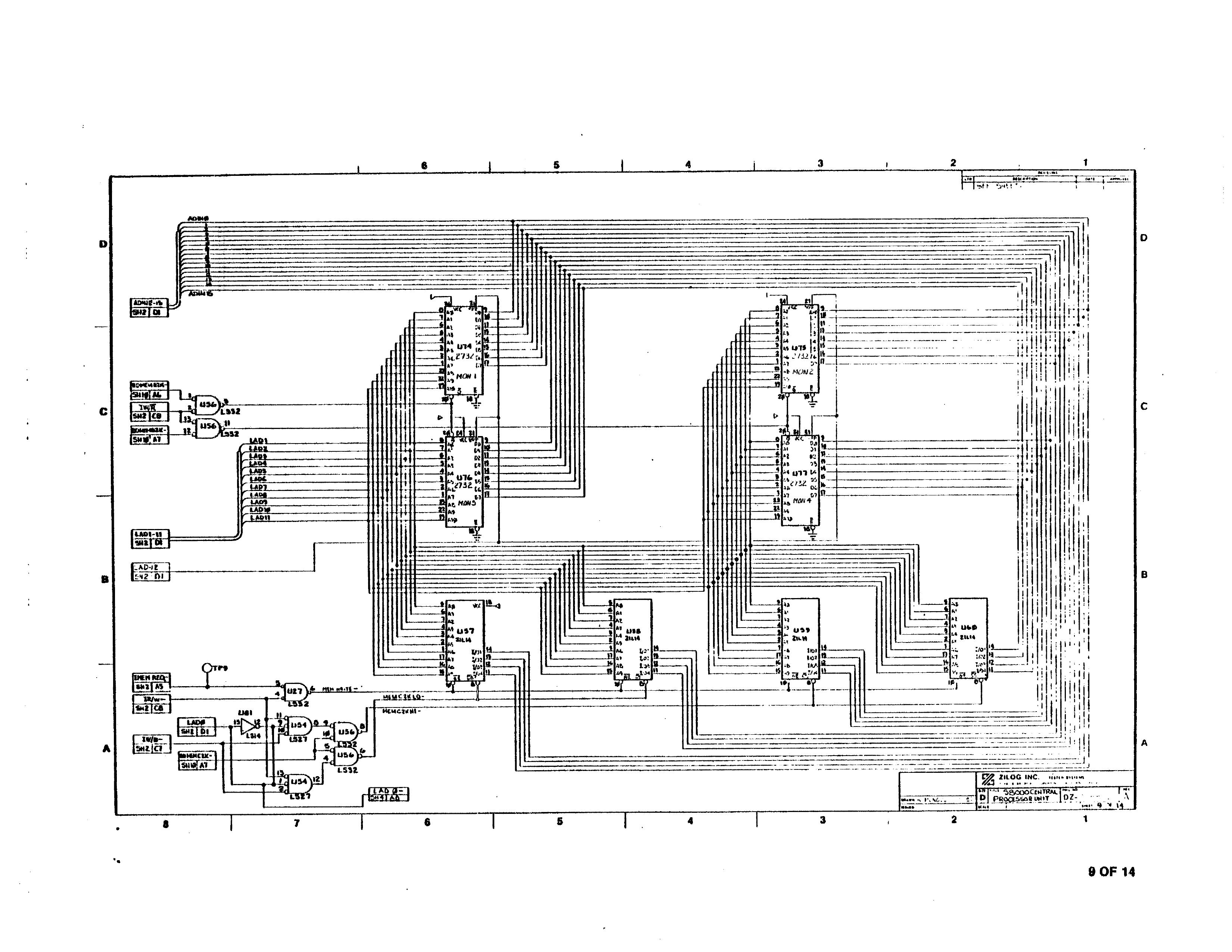

S8000_CPU_board_09.jpg 2008-10-31 22:21 1.0M

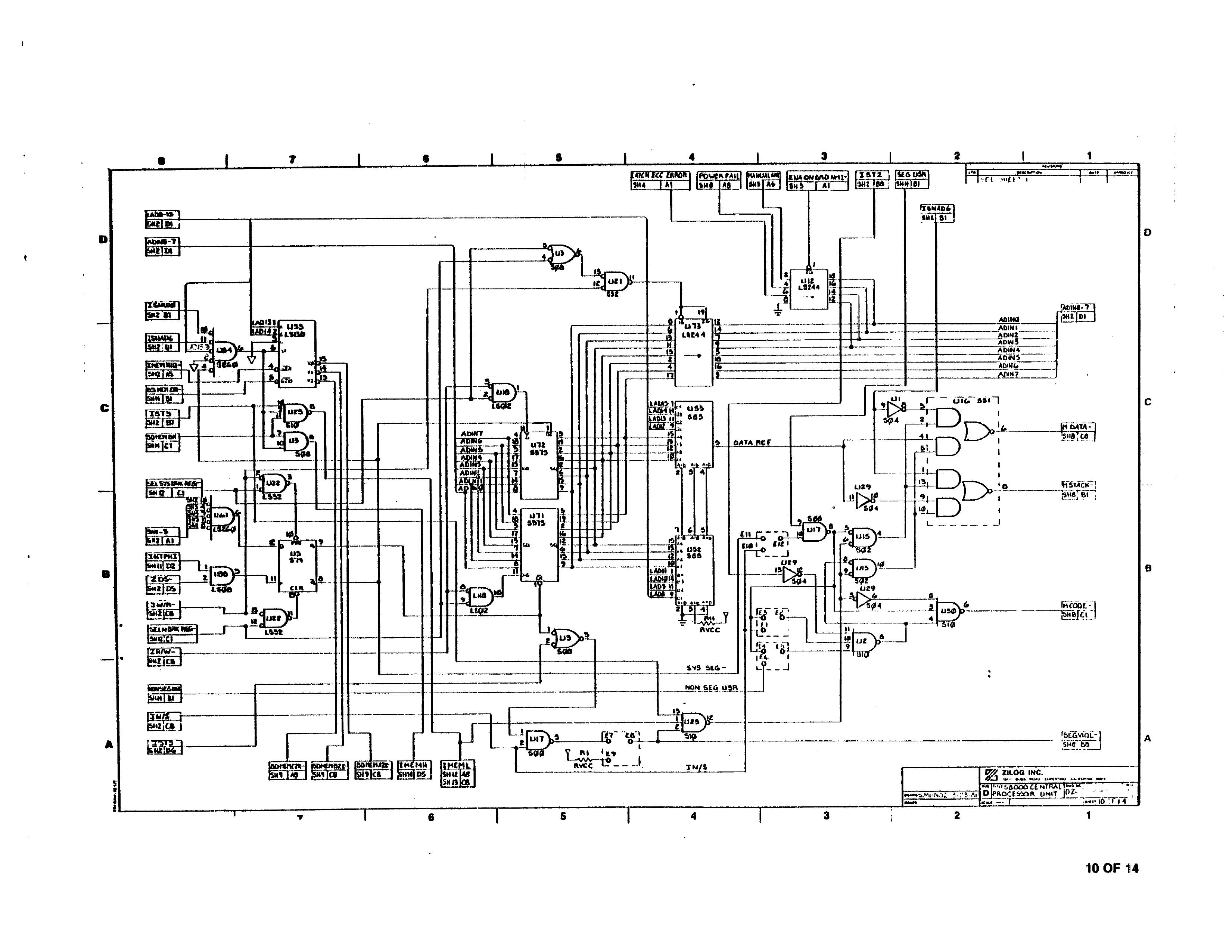

S8000_CPU_board_10.jpg 2008-10-31 22:22 777K

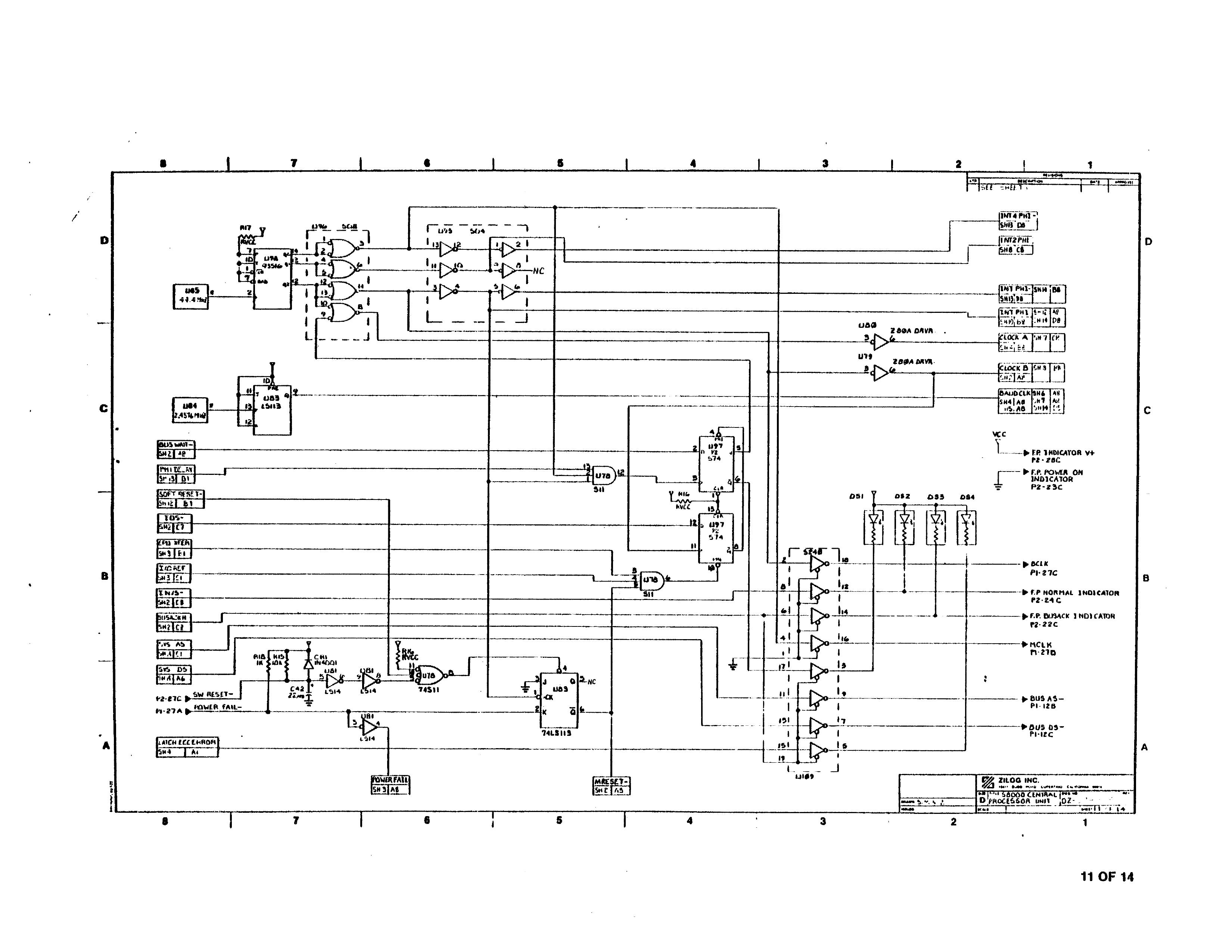

S8000_CPU_board_11.jpg 2008-10-31 22:23 641K

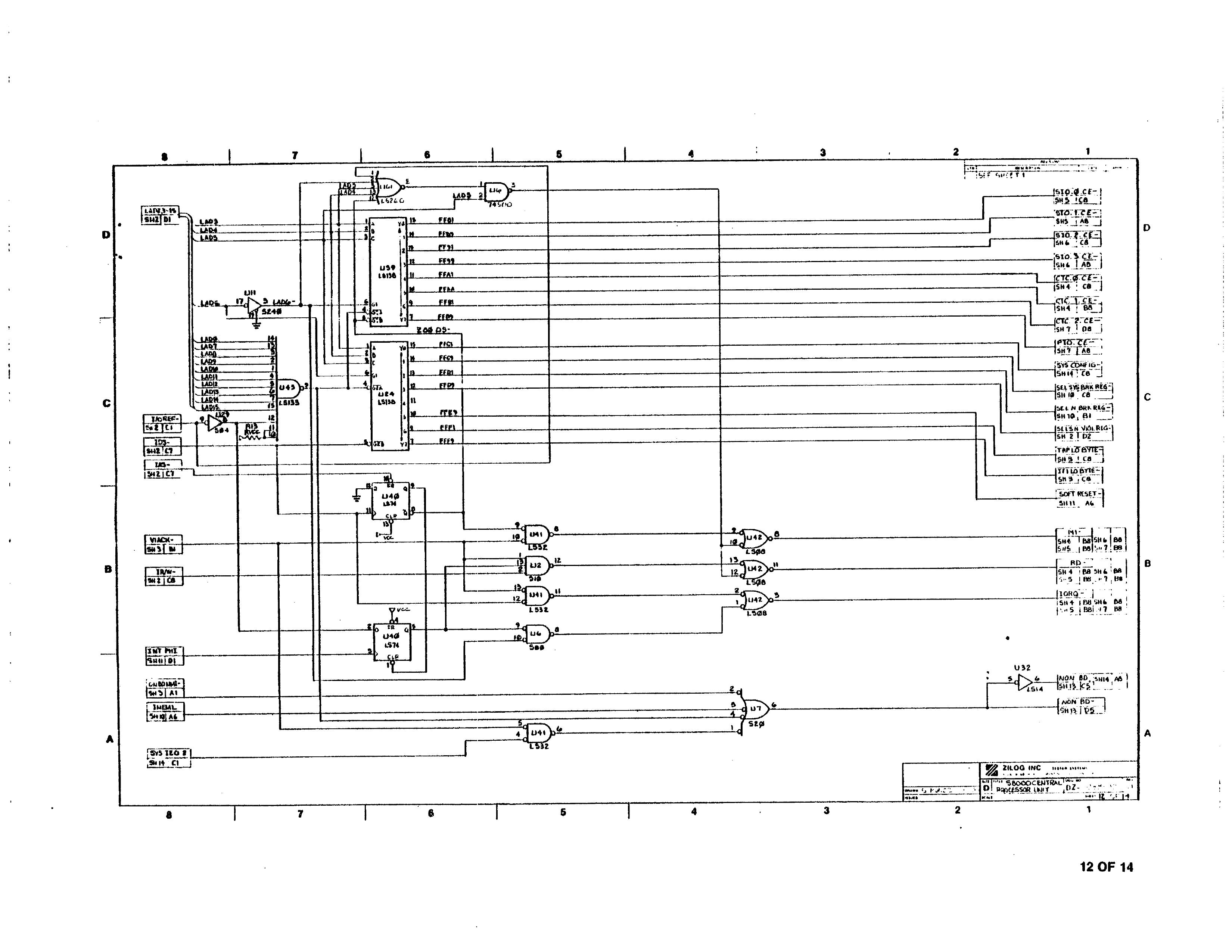

S8000_CPU_board_12.jpg 2008-10-31 22:24 677K

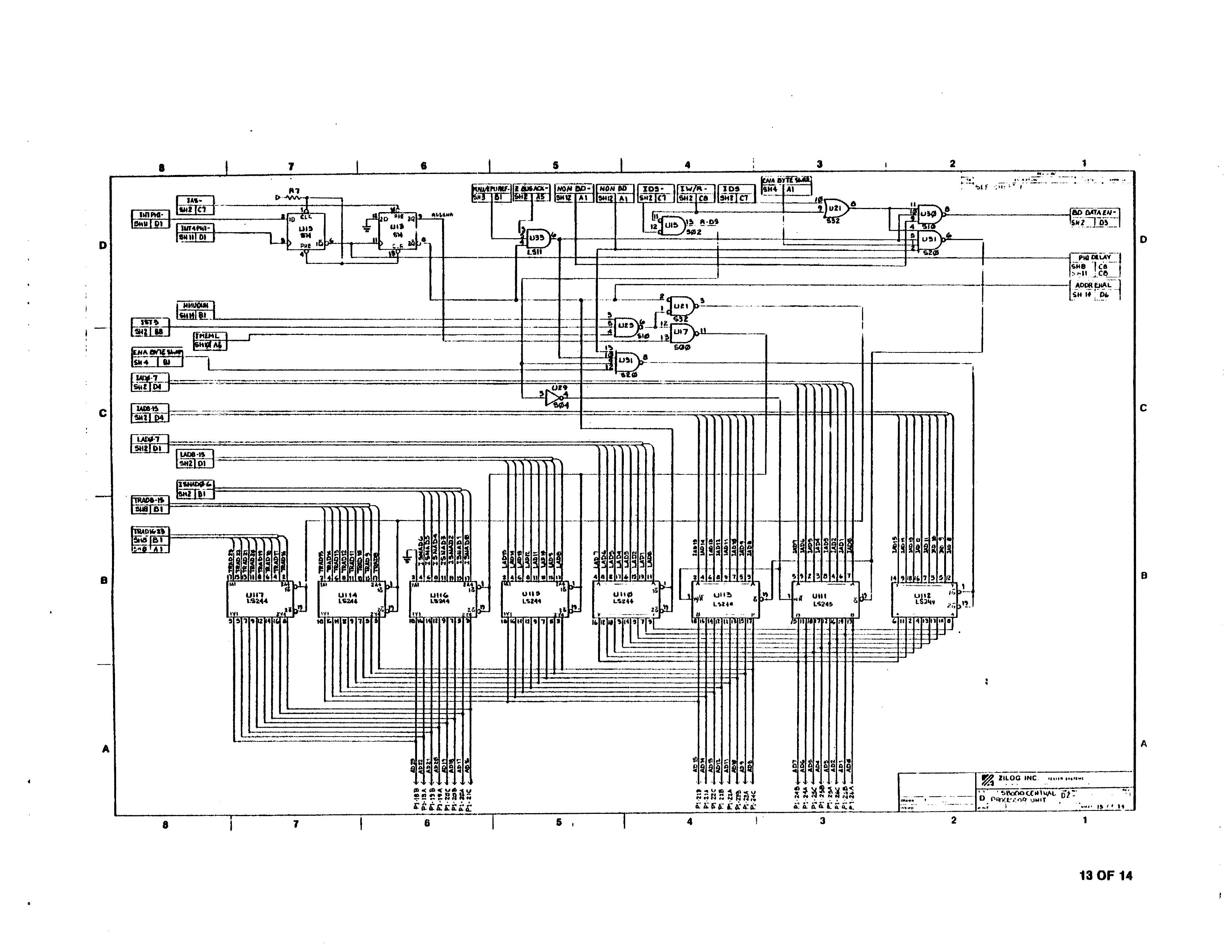

S8000_CPU_board_13.jpg 2008-10-31 22:25 869K

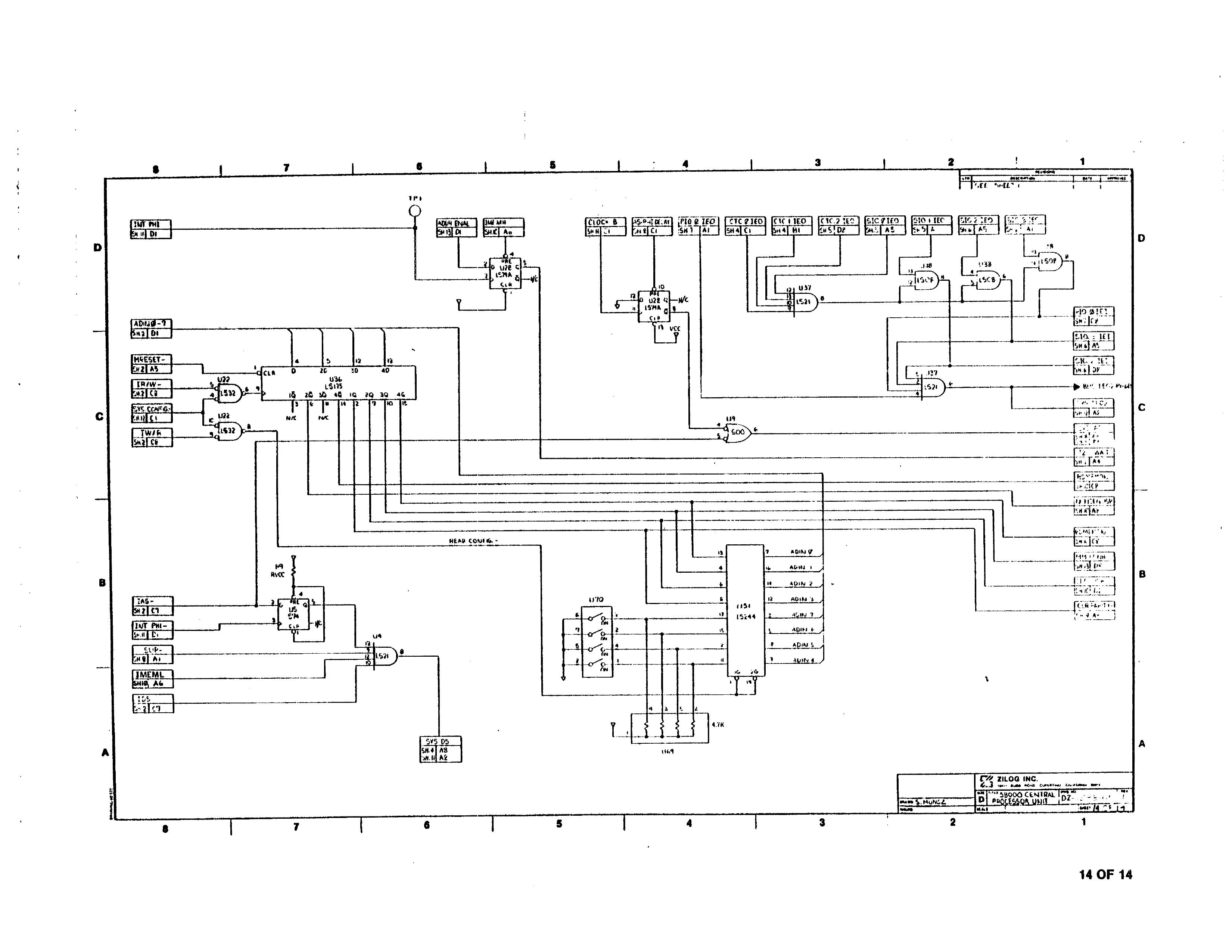

S8000_CPU_board_14.jpg 2008-10-31 22:26 582K
